Building a 3500-Watt Portable Battery Bank Solar Power Unit
We are completely dependent on technology to make our lives function as we expect. Those technologies all run on electricity, so what happens when natural or man-made disasters occur that shuts down the electrical grid? Everything we take for granted stops and the scramble for day-to-day survival starts as in the introductory You Tube video of the Civil Defense Manual illustrates here...
No communications, refrigeration, gasoline, internet or anything else works. How long will you be able to stay alive when your phone is dead, your food spoils and your lights are out. How long before desperate people come to your house and attack you for their own survival? The absence of Water alone will cause CHAOS WITHIN HOURS.
These are ugly questions that you should be ready to answer before the lights go out. Water, Food, medicines, shelter and Self-Defense are critical to staying alive.
Emergency Water and Food will keep you going when the grocery store shelves are emptied by the fools who didn’t prepare. Self-Defense capability can keep you alive when people are determined to get what they think you have.
Emergency Power is addressed in this short article

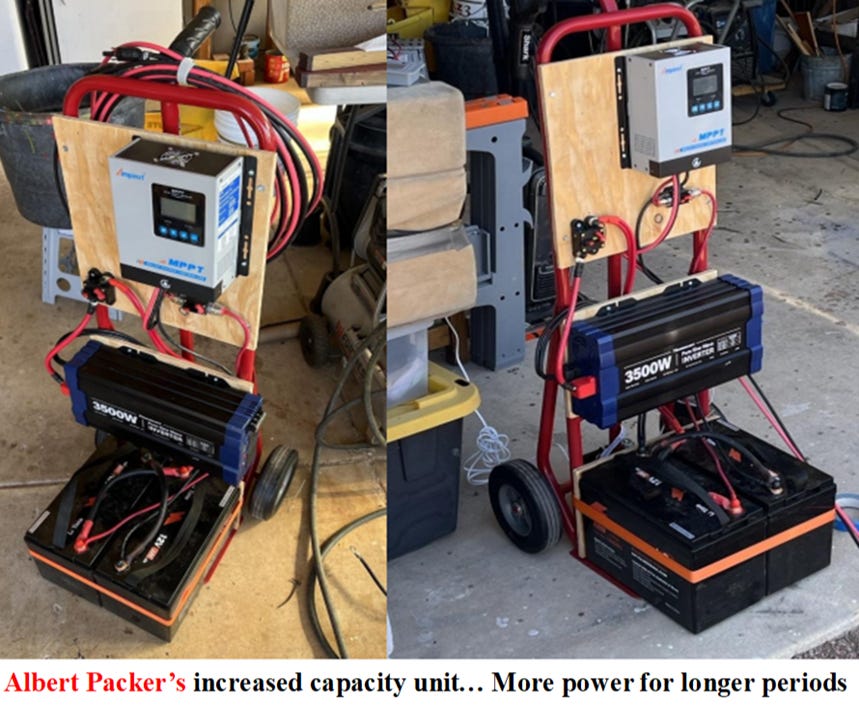

In the top photo is the complete Portable Battery Bank on the red Dolly Unit, and in the photo below it, are my portable Solar Panels that charge the battery bank.
If you don’t have a practical knowledge of all the other survival necessities during a crisis, you may not survive. You need stored Water and Food to start with. Next, firearms to defend yourself and family. In addition for me, I needed an emergency Portable Battery Bank Solar Power Unit that was priced and sized for my minimal power needs during emergencies. This is how I approached and resolved the issue.
There are many turnkey systems you can buy. For me, the cheapest and best way was to design and build a custom system for myself. In doing this, you will also have a better understanding of the whole issue of emergency power by building one yourself.
The following are the parts needed for a 3500-Watt Unit and measuring your needs…
The Kill-A-Watt Monitor (Photo A)
A two-wheeled transportation ‘Dolly’ hand truck (Like this red one from Harbor Freight)

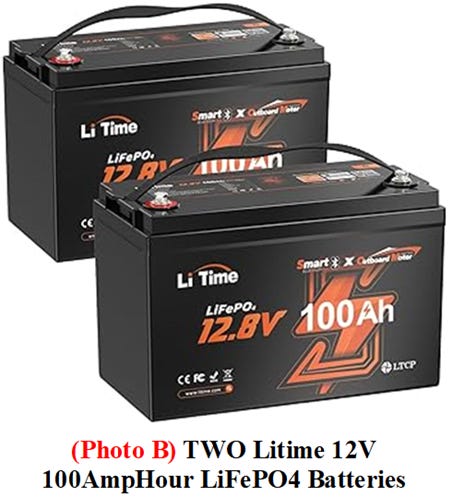

TWO Lithium ion batteries (Litime 12V 100Ah LiFePO4 Battery) (Photo B)
Link here:

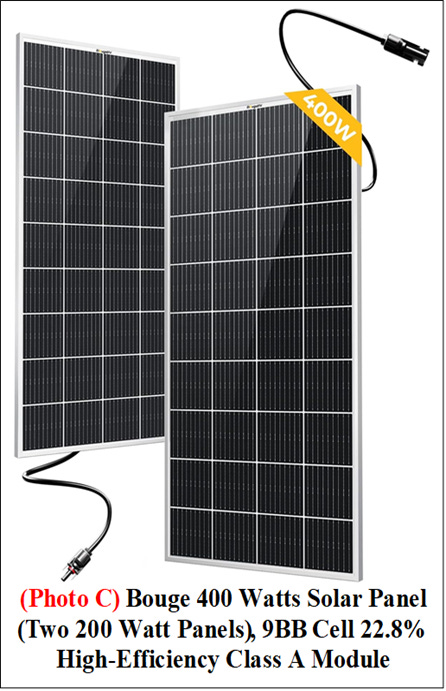

TWO 200-Watt Solar Panels (Photo C & D)
Link here: https://www.amazon.com/dp/B09QLW6XZN?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_8
The MPPT SOLAR Charge Controller (Photo E)
Link here: https://www.amazon.com/dp/B09Q83F257?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_7
Honourlight 3500-Watt Inverter (Photo F & I)
Link here:
https://www.amazon.com/dp/B0CSN6RNXJ?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_6

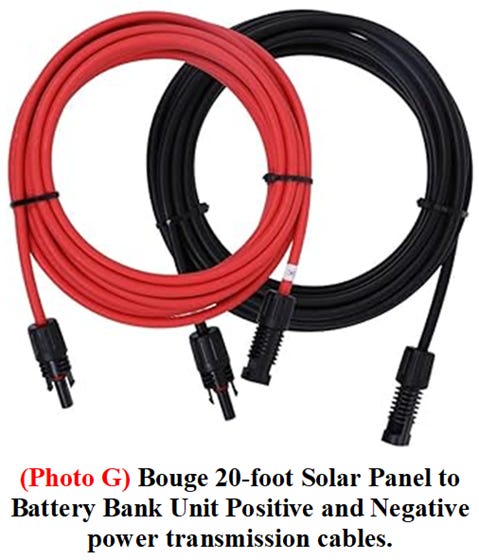

20 foot positive and negative transmission wires from Solar Panels to Dolly Unit quick connectors (Photo G) Link here:
https://www.amazon.com/dp/B075424L8R?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_7&th=1

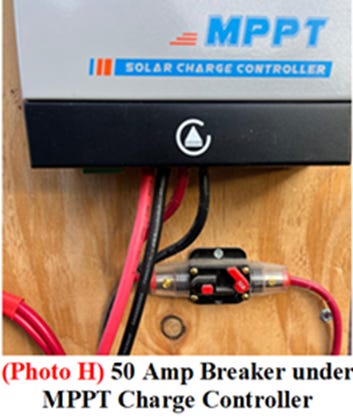

50 Amp Circuit Breaker Charge Controller (Photo H) Make sure you fuse your Charge Controller on the input side.

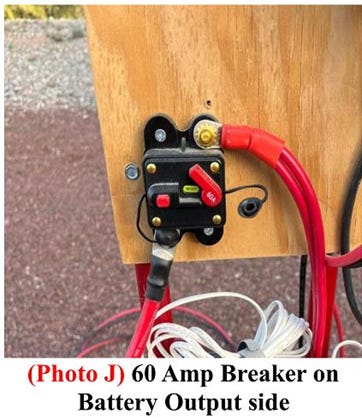

60 Amp Circuit Breaker Inverter (Photo J) Make sure you fuse the 12 Volt Batteries on the output side.
My design is customized to my needs based on my particular application. In an emergency when power stops to my property, I need a system that will run critical items that I can quickly connect CRITICAL ITEMS to like refrigerators and freezers to keep items in them from spoiling.
Make a list like I made here, for your CRITICAL POWER NEEDS…
Refrigerator
Freezer
HAM radios and other radio’s charging units
A small water pump.
I wanted something I could easily wheel out to the backyard, hook it up and catch direct sun. A Dolly seemed ideal to put the system on.

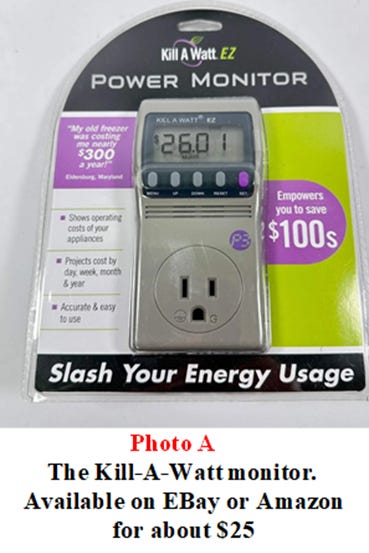

First step… the Kill-A-Watt Monitor
First, I needed to know what my daily minimal power requirements were for the above items I consider CRITICAL POWER NEEDS. I used a low-cost device called a Kill-A-Watt EZ Monitor and connected it one by one to CRITICALLY NEEDED items to measure power used during a 24-hour cycle (Photo A Kill-A-Watt Monitor). I did the same on other devices I anticipated using during emergencies and added them up to get the total power needed for 24 hours. That told me what I needed for battery storage and Solar Panel size.
The batteries…
I have the batteries pictured here. Lithium ion batteries are much superior to sealed lead acid. Longer life, higher power density and much higher power output. They can be a fire hazard, so park the items on the Dolly outside and protected from the rain, if possible.
They are 2400w of battery storage…2x/100Ahr (Amp hours). I use between 1.2 kwh and 1.4 kwh per day for the refrigerator and freezer. I used a Kill-A-Watt unit to do 24-hour power draw estimates on different appliances. The refrigerator and freezer consume about 1.3 Kw per day. It is important that you measure your max usage per day per item you need powered by your Portable Battery Bank Solar Power Unit then add them all to determine the total capacity you personally need.
The Solar Panels…

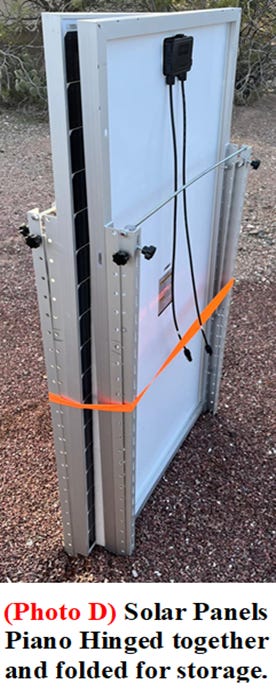

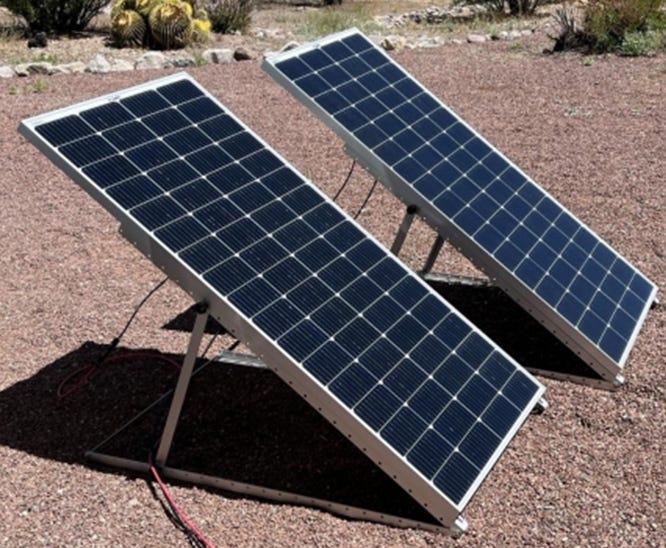

I have two 200-Watt Solar Panels in an aluminum frame. I piano-hinged these together in the middle to fold for storage (Photo C & Photo D). They are wired in series for 24v to a Charge Controller that outputs 12 volts to the batteries.
Computers, radios, flashlights, fans draw far less. So, assuming I will eat through my perishable food supplies in a couple of weeks and then disconnect the refrigerator and freezer, I won’t be drawing 1.2 Kw per day for very long. I will have a lot of power for neighbors who may need it. Electrical power is a great barter item to those who don’t have electricity.
The Charge Controller…

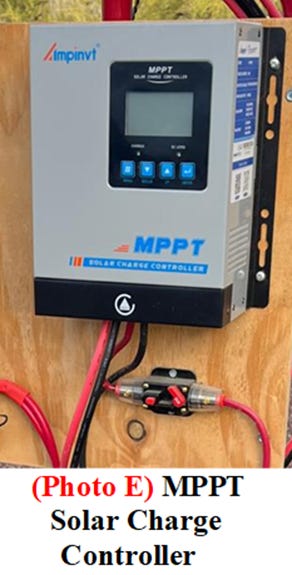

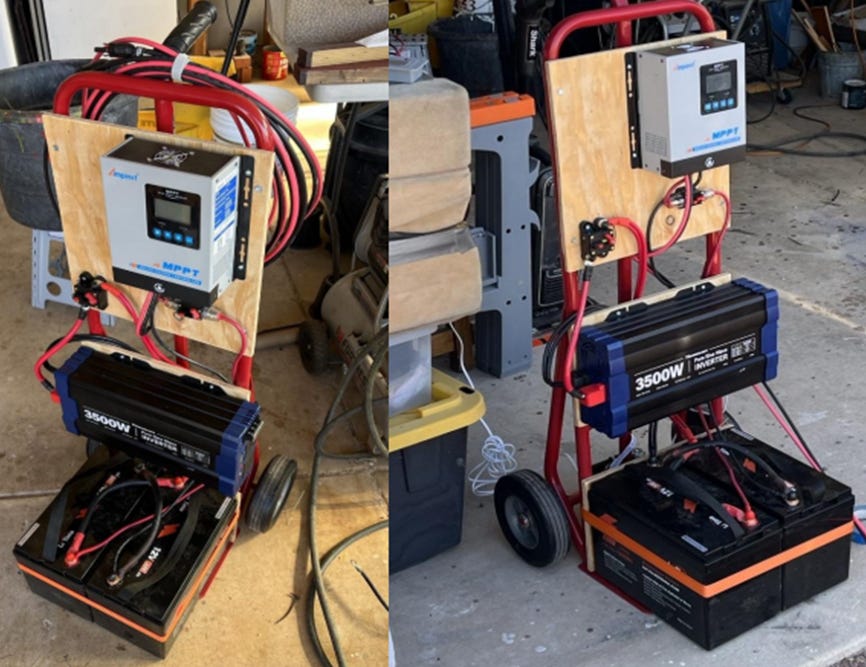

The Charge Controller (Photo E) is on top of the stack with the Inverter in the middle and the heavy batteries on the Dolly’s steel bottom plate. The Dolly Unit weighs about 80lbs. It has solid rubber tires, so no flat tires. I just wheel it out under the patio by the garage, run my wires outside to the Solar Panels, plug in the quick connectors and start generating power.
The Inverter…

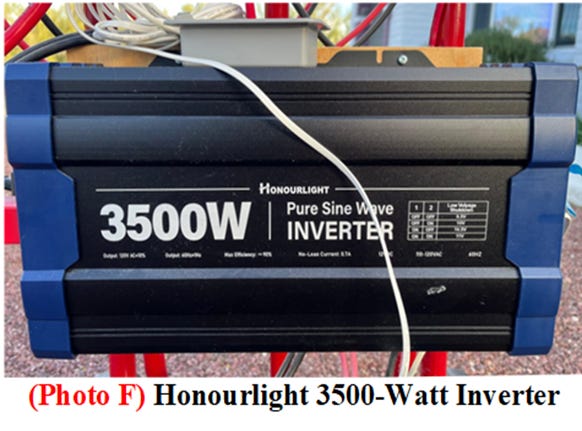

The Inverter (Photo F) is close to the batteries to attenuate transmission losses. Make sure you connect multiple batteries in parallel to maintain a 12 volt feed to your Inverter.
Make absolutely certain the Inverter is grounded to your home electrical ground system.
Connect the Inverter Positive and Negative diagonally to the opposite terminals to balance the draw and recharge current from the batteries. Trip the breakers off when not in use for safety. The Inverter lugs, if not fully insulated, are subject to a horrible and dangerous short. Be cautious when connecting wires to them and then fully insulate and cover them.
The Solar Panel to Dolly Unit power lines…
I use quick connects to attach those wires from the Solar Units to the Dolly Unit. The inverter then powers my AC stuff. These are the positive & negative power transmission leads to the Solar Panels along with a ground wire (Photo G). You need to include a stranded wire green colored ground from Solar Panel to Dolly Unit and ty-wrap or tape all three together.
The ground is terminated with a heavy alligator clip. I use a Stainless-Steel rivet that “just fits” into one of my existing house 120 Volt AC wall outlet ground receptacle, and clamp the ground wire alligator clip to it. Make sure you fuse your Charge Controller (Photo H) on the panel input side and the 12v battery (Photo J) on the output side. I use 30Amp ATO auto fuses in a waterproof holder.
Breakers…
Include a green stranded and insulated ground wire for electrical grounding in with your 20 foot Bouge Solar Panel to Dolly Unit connection wires. Tape or Ty-Wrap the Red, Black and Green connection wires together every twelve inches or so. Make certain there is a good ground from the Solar Panels… to the Dolly Unit Inverter… to the Dolly Unit Charge Controller… straight through to the house ground of your existing home wall electrical outlet system. Again, the Dolly Inverter and Charge Controller must ground to the Dolly and then to your home outlet ground.

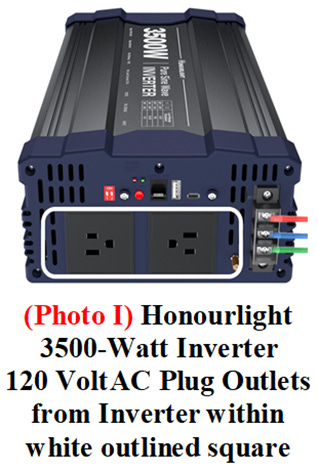

Plug Outlets for powering your Critical Items on the Inverter…
Plug your power cords into the outlets on the end of the Inverters. Walla! Power!
So that’s my story and it’s working very nicely. I would recommend everyone buy a Kill-A-Watt meter and do tests on any appliance or device you want to use. That will tell you the total wattage draw for your favorite things and necessities when added together. Then you can predictably configure your component sizes—Solar Panels, Charge Controller, Inverter, batteries, wire sizes, etc.
We had a three-day outage several years ago and kept cool and well fed during a hot Southwestern high desert summer. Electricity can be a barter item! I’ll charge your radio batteries for a week for ______________________ & _______________________?
BE KIND TO YOUR LOCAL ELECTRICAL POWER LINEMAN… HE RISKS HIS LIFE TO GET YOU ELECTRICITY. DON’T ELECTROCUTE HIM!
If you use isolated circuits of your home electrical system for CRITICAL ITEMS and to power them… TURN THE MAIN POWER OFF TO YOUR HOUSE AT YOUR HOUSE BREAKER PANEL BEFORE CONNECTING THIS EMERGENCY POWER UNIT TO THOSE ISOLATED CIRCUITS OF YOUR HOUSE SYSTEM.
THEN… to keep from putting power OUT into the line that provides electricity to your house from the electric company…
DISCONNECT THIS BATTERY BANK UNIT FROM YOUR HOME ELECTRICAL SYSTEM BEFORE TURNING ON YOUR MAIN HOME BREAKER PANEL! THAT IS SO YOU DON’T PUT ELECTRICAL POWER OUT INTO THE POWER LINES FEEDING INTO YOUR HOME AND KILL SOMEONE WORKING ON THE POWER OUTAGE. LINEMEN WILL ASSUME THERE’S NO POWER IN THEM.
YOU CAN ELECTROCUTE POWER LINEMEN IF YOU DO NOT FOLLOW THE ABOVE PROCEDURES.
There are Electrical Schematics on the internet…. BUT, DON’T BE A BUTTHEAD… follow the directions in the next box with your safety and others in mind…
